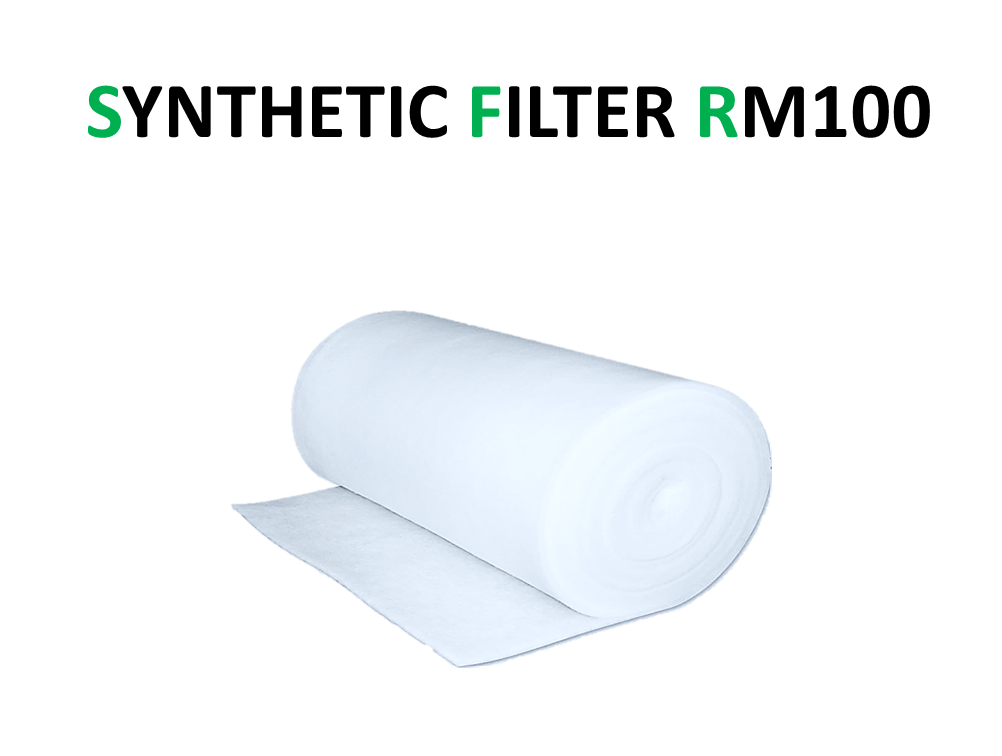

RM100-Common Applications
Application: ≥5μm, Filter dust
Type: supply slices or rolls size
Media: synthetic fiber with gradual density
Washable: about 4-5 times
EN779 class: G2
Average arrestance: 75%（ASHRAE52.1-1992）
EUROVENT4/5 class: EU2
Final resistance: (suggest) 220 Pa.
Max. Dust holding capacity: 430g/㎡
Temp. resistance: 100℃

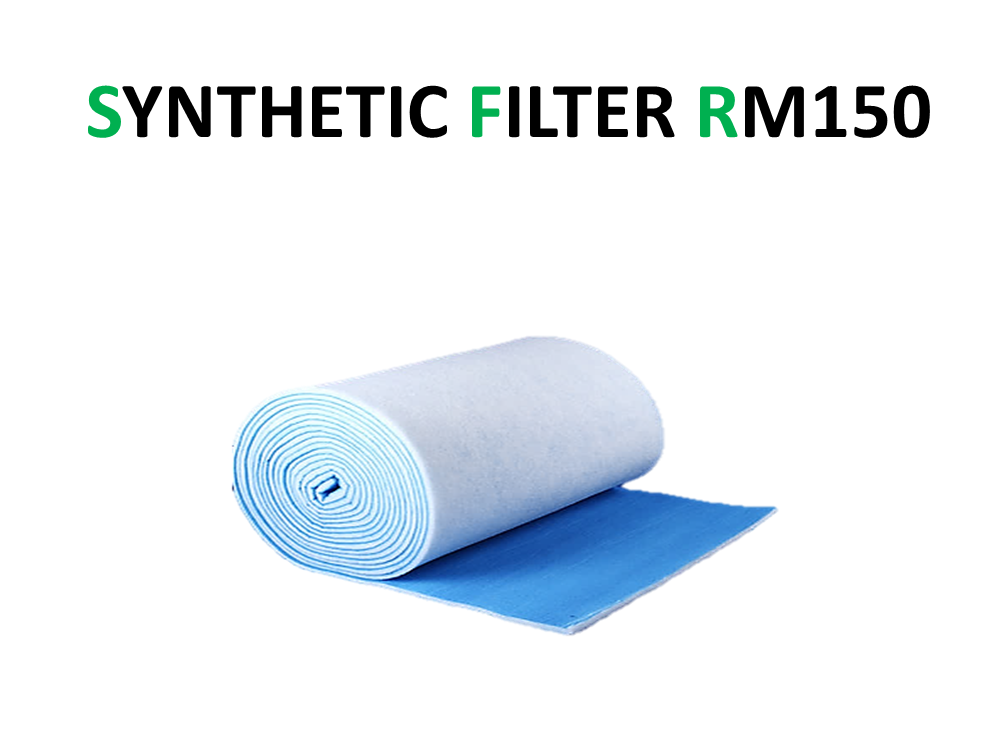

RM150-Common Applications
Application: ≥5μm, Filter dust
Type: supply slices or rolls size
Media: synthetic fiber with gradual density, inlet side is blue color
Washable: about 4-5 times
EN779 class: G3
Average arrestance: 88%（ASHRAE52.1-1992）
EUROVENT4/5 class: EU3
Final resistance: (suggest) 250 Pa.
Max. Dust holding capacity: 520g/㎡
Temp. resistance: 100℃

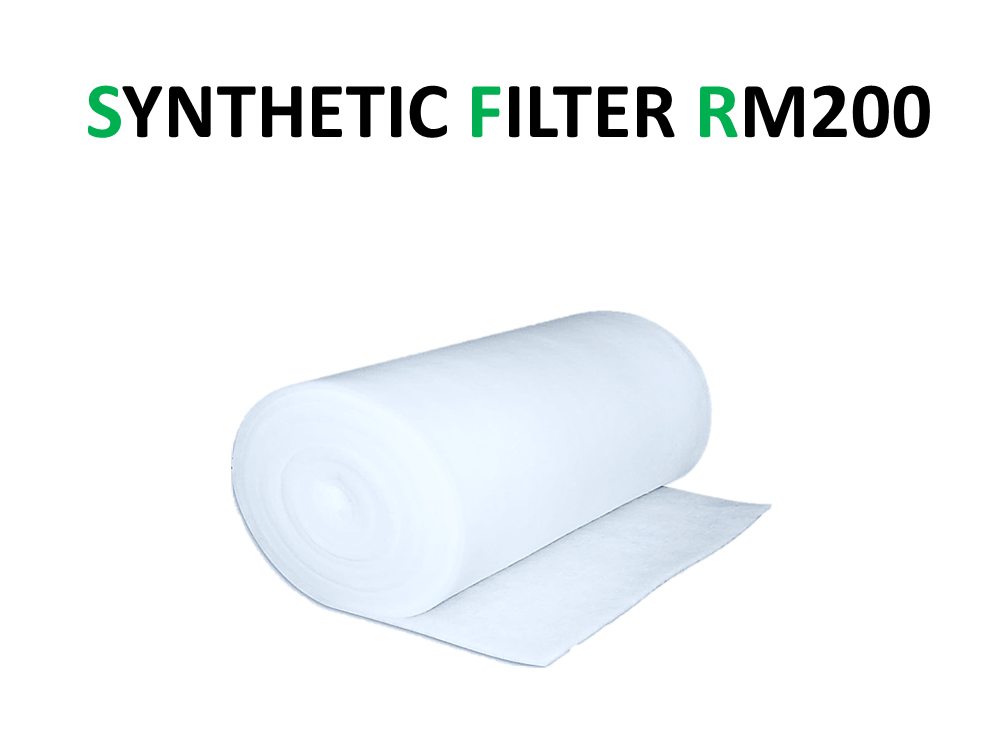

RM200-Common Applications
Application: ≥5μm, Filter dust
Type: supply slices or rolls size
Media: synthetic fiber with gradual density
Washable: about 4-5 times
EN779 class: G4
Average arrestance: 90%（ASHRAE52.1-1992）
EUROVENT4/5 class: EU4
Final resistance: (suggest) 295 Pa.
Max. Dust holding capacity: 820g/㎡
Temp. resistance: 100℃
